Pompa Piscina Victoria Plus Silent da 0.5 a 3 HP - da 10 a 34 mc/h Monofase | 1 HP - 16 mc/h

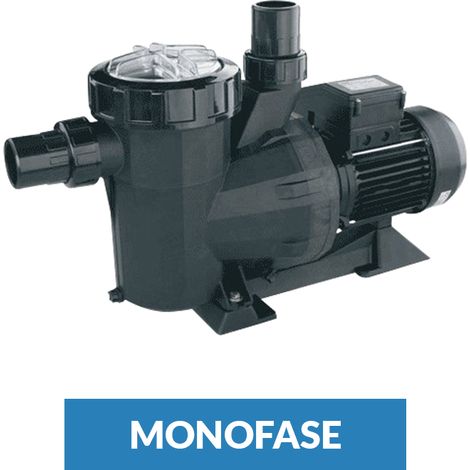

AstralPool Victoria Plus Silent – 1.00 HP Single-Phase Filtration Pump (Ref. 65562)

The Victoria Plus Silent 1.00 HP (100M – Ref. 65562) is the ideal option for small residential pools who are looking for a bomb quiet, efficient and durable. Its high-resistance thermoplastic body and motor with protection IP55 ensure reliable operation even in hot and humid environments.

This pump offers a good compromise between flow and electrical consumption, allowing the quality of the water to be maintained with a very contained noise level. It is totally compatible with existing Victoria Plus installations, making it a perfect direct replacement for engine room renovations.

The range Victoria Plus Silent covers models from 0.5 to 3 HP, in versions single-phase and three-phase, to fit virtually any residential pool. Thanks to optimized hydraulic design and its high-performance engines, it offers high flow rates and good manometric heights, maintaining adjusted consumption.

All pumps are manufactured in Europe and tested under demanding conditions before delivery, resulting in a long lifespan and simple maintenance. Its materials are compatible with all types of treatments, including salt electrolysis, and the range has up to 5 years warranty (3+2 years under installation registration).

Below you have the technical specifications table with the twelve models in the range ordered by power (from 0.5 HP to 3 HP, first single-phase and then three-phase) and a dimension table with the main measurements to facilitate installation or replacement.

	0.5 HP – 50M	0.5 HP – 50T	0.75 HP – 75M	0.75 HP – 75T	1 HP – 100M	1 HP – 100T	1.5 HP – 150M	1.5 HP – 150T	2 HP – 200M	2 HP – 200T	3 HP – 300M	3 HP – 300T
Reference	65557	65558	65560	65561	65562	65563	65564	65565	65566	65567	65569	65570
Rated voltage UN (V)	230	230/400	230	230/400	230	230/400	230	230/400	230	230/400	230	230/400
Nominal flow rate Qn (m³/h)	7,5	7,5	11	11	16	16	21,5	21,5	26	26	35	35
Nominal manometric head HN (m)	10	10	10	10	10	10	10	10	10	10	10	10
Max height Hmax (m)	13	13	15	15	17	17	18	18	18	18	21	21
Maximum capacity at 4 m	14,5	14,5	18	18	23,5	23,5	29	29	33,5	33,5	41	41
Rated power P2N output (kW)	0,38	0,38	0,56	0,56	0,75	0,75	1,12	1,12	1,49	1,49	2,24	2,24
Max absorbed power P1 (kW)	0,58	0,55	0,72	0,72	0,98	1,02	1,40	1,40	1,80	1,80	2,59	2,40
Weight with packaging (kg)	12	12	13	13	14	14	17	17	18	19	23	19
Packaging volume (m³)	0,07	0,07	0,07	0,07	0,07	0,07	0,07	0,07	0,07	0,07	0,07	0,07
D tube size (mm)	D50	D50	D50	D50	D50	D50	D63	D63	D63	D63	D75	D75
