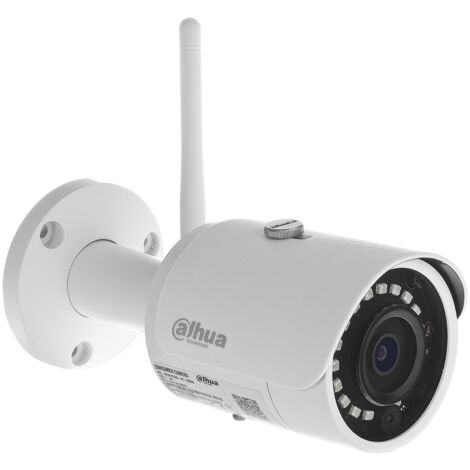

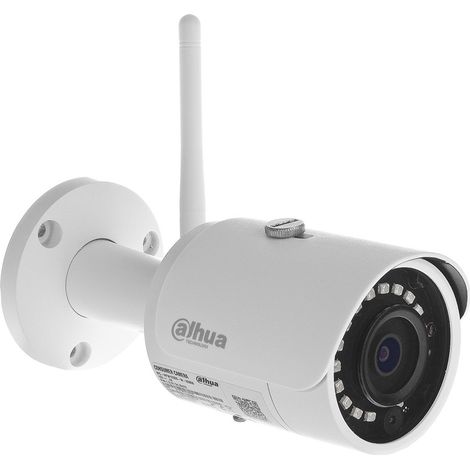

Telecamera IP Bullet WiFi 4MP Ottica Fissa 2.8mm H.265 IP67 Dahua IPC-HFW1435S-W-S2
Informazioni sul prodotto
Descrizione
La telecamera IP con un algoritmo efficiente di compressione dell'immagine H.264 / H.265 garantisce un'immagine chiara e nitida a una risoluzione massima di 2688 x 1520 (4.0 MPx).
La telecamera è gestibile da remoto tramite app attraverso smartphone. Configurazione e installazione dei parametri di rete facilitata P2P – Sistema scan QR Code con servizio cloud e applicazione gratuita (disponibile per sistemi Android e IOs). Piccola, dal design moderno ed elegante dotata di struttura in alluminio di colore bianco. Ideale per video sorvegliare piccole aree domestiche, aziendali e commerciali. Il modulo Wi-Fi usato consente la comunicazione remota con la telecamera a una distanza di fino a 50 m
WiFi
WIRELESS 802.11b/g/n così da connettere la telecamera anche senza la presenza del cavo
Smart H.265 + e Smart H.264 +
Compressione video fino all'ultimo e più efficiente standard H.265!
Riduzione fino al 50% dello spazio occupato per l'archiviazione
Riduzione fino al 50% della larghezza di banda utilizzata
ONVIF
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione.
WDR (Wide Dynamic Range)
Fornisce dettagli chiari e nitidi anche in ambienti con elevata luminosità con ombreggiatura in controluce.
Smart Illumination
La tecnologia Dahua Smart Illumination consente la visualizzazione di immagini in ambienti con scarsa illuminazione. In funzione della distanza, la telecamera regola automaticamente l'intensità del led IR per visualizzare i dettagli anche in soggetti in movimento.
Day/Night
La funzione Dahua Day / Night fornisce un'immagine a colori quando l'illuminazione è sufficiente, quando l'illuminazione è inadeguata, cambia la modalità notturna e fornisce un'immagine in bianco e nero.
Protection (IP67, wide voltage)
Adatta ad ambienti esterni e interni (Protezione IP67 (polveri / immersioni brevi)
Principali Funzioni
Telecamera Wireless IP ONVIF da esterno - Serie Consumer Dahua
WiFi 802.11b/g/n, 50 metri in spazio aperto
Risoluzione 4Megapixel 4 MP
Ottica fissa da 2.8mm
Sensore d'immagine 1/3” CMOS 4Megapixel progressivo
Compressione video fino H.265
Day/Night (ICR)
Illuminatore IR LED 30M
Motion Detection
Cloud P2P con applicazione compatibile con Android e iOS
Bottone Reset /WPS- Slot MicroSD (fino a 128GB - non inclusa)
Alimentatore 12V DC incluso
Adatta ad ambienti esterni e interni (Protezione IP67 (polveri / immersioni brevi)
Dimensioni Φ78.5mm×127.8mm (Φ2.8inch×6.5inch)
Specifiche tecniche:
| Camera | |
|---|---|
| Image Sensor | 1/3”4Megapixel progressive CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | >52 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 18 (IR LED) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Video Frame Rate | 50 Hz Main stream (2560 × 1440 @20 fps), sub stream (640 × 480 @20 fps) 60 Hz Main stream (2304 × 1296 @30 fps), sub stream (640 × 480 @30 fps) |
| Resolution | 4M (2560 × 1440); 2M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480); QVGA (320 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 24 kbps–8192 kbps H.265: 9 kbps–7424 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with all resolution) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| SDK and API | Yes |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP |
| Interoperability | ONVIF (Profile T/Profile S/Profile G); CGI; DMSS |
| User/Host | 20 (Total bandwidth: 40 M) |
| Storage | FTP; SFTP; Micro SD card (256 G); NAS |
| Browser | IE: IE9, IE11 and later Chrome: 39.0.2171.95, and later version without plug-in (62.0.3202.94) Firefox: 43.0.1 and later version without plug-in (69.0.3) |
| Management Software | DMSS |
| Mobile Phone | IOS; Android |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | Max 5.39W (12V DC) (IR full intensity) |
| Environment | |
| Operating Conditions | –30°C to +50°C (–22°F to +122°F)/Less than 95%RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 164.9 mm × 70 mm × 125.2 mm |
| Weight | 431 g |

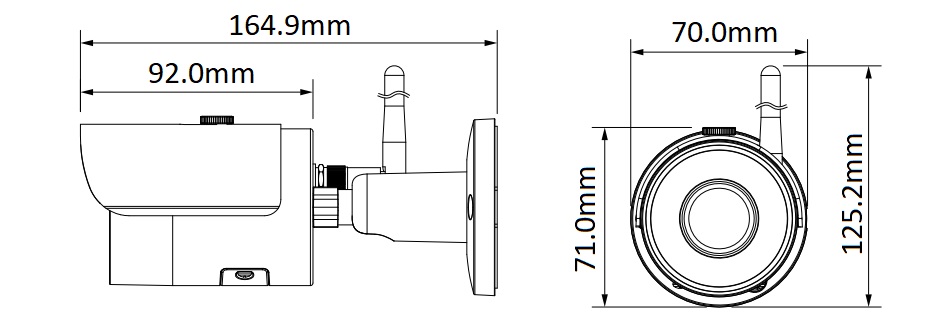

Disegno tecnico:

Caratteristiche
- MarcheDAHUA
- Larghezza15 cm
- Peso440 g
- Tensione elettrica12 V
- MaterialeMetallo
