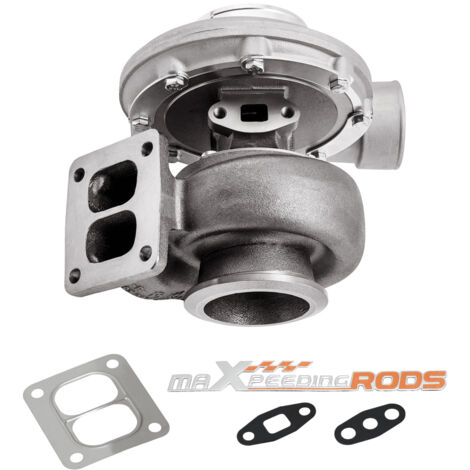

S300SX3 Turbo Turbina 320-800hp 0.91 A/R T4 Flange 177272
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione
Applications:
for John Deere Agricultural Tractor with 6081H 2001-06
for John Deere Various
Turbo Model: S300G, S300S-084, S300S0102, S300S084,S300-83H33DC-AGM/0.9176ZD3
Engine:6081H
Replacement & Part Number:
177272, 177275, 177281,176635,176647
Specifics:
Turbine Inducer: 80mm/3.14in
Turbine Exducer: 73mm/2.9in
Turbine Trim: 85
Turbine A/R: 0.91
Turbine Wheel: 10 blades
Turbine Inlet Flange Type: T4
Oil Return: 2-3/8-16
Oil Inlet: 4.8mm
Turbine Outlet Flange Type: for Marmon flange
Compressor Inducer Diameter: 66mm/2.6in
Compressor Exducer: 96mm/3.8in
Compressor Trim: 47
Compressor Wheel: 7+7 blades
Scroll Type: Twin
Bearings Type: Floating bearing
Note:
condition:brand new
Warranty: 2 year warranty with any manufacture defect
You will get exactly as picture show
Any problem please contact with us
Professional Installation is Highly Recommended(Installation Instruction is not Included)
Caratteristiche
- MarcheMAXPEEDINGRODS
- Larghezza24 cm
- MaterialeMetallo
- Garanzia2 anno(i)
- Referenza ManoManoME211782006
