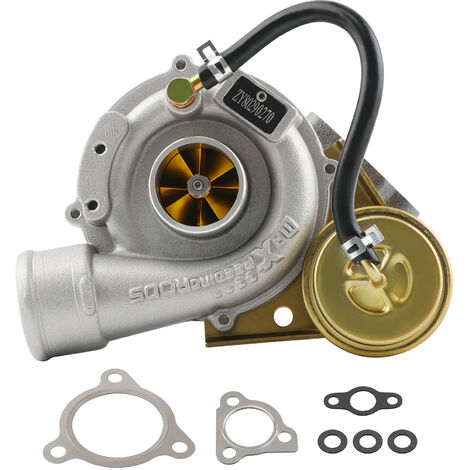

K03 billet AGGIORNAMENTO TURBOCOMPRESSORE PER VW PASSAT 1.8T AEB/ANB/APU/AWT 99

For Audi for VW K04-015 Replacement Turbocharger

Turbo Model:

K03, K03S

Application:

for Audi A4 1.8TAEB/ANB/APU/AWT20v/AVJ 1995 - 1999

for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -

for Audi A4 Upgrade 1.8T 1995 -

for Audi A6 1.8T AEB/ANB/APU/AWT 1997 -1999

for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -

for VW PASSAT 1.8T AEB/ANB/APU/AWT 1999 -2004

for VW PASSAT 1.8T Upgrade 1999 -2004

Interchange Part Number:

53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX , 058145703NV,
058145703Q，058145703QX,058145703QV，
058145703B, 058145703C, 058145703D，
058145703E, 058145703H,

Specification:

Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet:  50 mm
Blades: 4 x 4  blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange

Turbo Model: k03 upgraded, K03S
Engine： AEB/ANB/APU/AWT/AVJ/BEX
Fuel: Gasoline
Cooling Type：Water & Oil Cooling
Horsepower Rating: up to 220 HP
Bearing Type:  Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type:Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight：5700g
Package Size：26*24*23cm

NOTE:

* Please confirm your old turbo part number matches up with one of the part numbers above

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us

* The color of the shell impeller: Gold and silver random delivery
