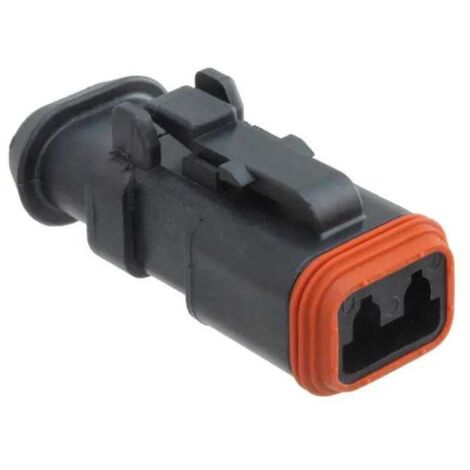

Connettore Serie DT Maschio 2 Vie Nero CE13

Codice ErreBi: 46729
Codice produttore: DT06-2S-CE13
Produttore: Deutsch
Vendita al pezzo

Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Connector & Contact Terminates To: Wire & Cable
- Strain Relief: Add By Accessory

Configuration Features
- Number of Positions: 2
- Number of Rows: 1
- Blank Cavity Position: 0

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Pin Diameter: 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 5.46 mm [ .215 in ]

Dimensions
- Width: 15.01 mm [ .591 in ]
- Height: 15.77 mm [ .621 in ]
- Length: 40.92 mm [ 1.611 in ]

Usage Conditions
- Operating Temperature (Max): 125 °C [ 257 °F ]
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
- Circuit Application: Power & Signal

Industry Standards
- Degree of Protection: IP68, IP6K9K
- UL Flammability Rating: 12mm Flame Test per Standard UL-94
- Agency/Standard: SAE J2030

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes

Scheda Tecnica

Tipologia di prodotto: Corpo del connettore
Serie: DT
Amperaggio: 13A
Materiale: PA (Poliammide, Nylon)
Colore: Nero
IP Protezione: IP68
Temperatura operativa: -55°C a +125°C
Dimensione: 40,92x15,01x15,77 (L x W x H)
Voltaggio: 250V
Montaggio: Sul cavo
Genere: Maschio
Numero di poli: 2
Numero di file: 1
Passo: 5.46 mm
Orientamento: Diritto (180°)
