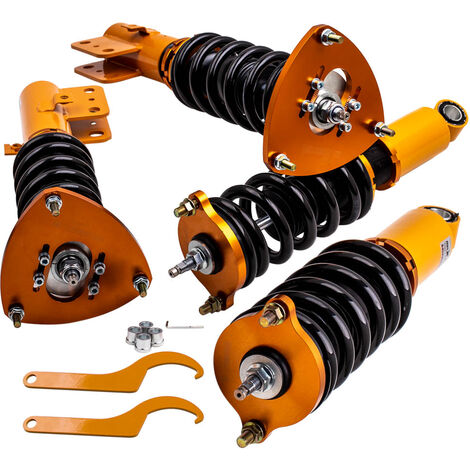

Ammortizzatori Suspension Coilovers Per Subaru Legacy IV 4 BL BP 2.0 AWD 3.0 R

Application

For Subaru Legacy 2005-2009 USA BL9 BP9
For Subaru Legacy B4 2003.05-2009.04 JPN BLE BL5
For Subaru Legacy Touring Wagon 2003.05-2009.04 JPN BP5 BPE

Specification:

Quantity:2 piece front + 2 pieces rear
Top mounts: Front pillow ball top mount with camber plate
Damping: 24 levels rebound damping adjustable
Adjustable camber plate: Front only
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 200mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 460mm-550mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold
Warranty:2 Years warranty for any manufacturing defect

Feature:
* Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.

* Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
* A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
* Camber plate top mounts help to eliminate the need for a separate camber kit.
* Pillow ball top mount - It improves the steering feel and response.
* Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
* Twin-Tube structure allows sufficient stroke within the shock absorber.
* Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
* Separate height adjustment does not affect damper stroke.
* Height can be adjusted with coilovers installed on the vehicle.
* High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
* Height Adjustment tools included.
* Full rebuildable.

Notice :
- Hi-performance aftermarket parts; no instruction included; professional installation is suggested.
- Please feel free to contact us for whatever we can help; everymessagewill be replied in less than 12 hours.
