Timing Chain Set + Adjustment Tool Kit for Audi A3 8P1 for VW Golf V 1K1 1.6 FSI

Fit for:
For Audi A3 8P1 1.6 FSI 2003 / 08-2007 / 09 1598 ccm, 85 KW, 115 PS
For Audi A3 Sportback 8PA 1.6 FSI 2004 / 09-2007 / 09 1598 ccm, 85 KW, 115 PS
For VW Golf V 1K1 1.6 FSI 2003 / 10-2008 / 07 1598 ccm, 85 KW, 115 PS
For VW Passat 3C2 1.6 FSI 2005 / 03-2008 / 06 1598 ccm, 85 KW, 115 PS
For VW Touran 1T1, 1T2 1.6 FSI 2003 / 02-2007 / 01 1598 ccm, 85 KW, 115 PS

Timing chain set OE comparison number:

03C109158A, 03C109158, 03C109158AS1
03C109507AH, 03C109507BH, 03C109509P
03C103825A, 03C109088B, 03C109158A, 03C109469K
03C109469K, 03C109507M, 03C109469J
03C109088E, 03E109511

Timing tool kit Comparable to the original numbers:

- Camshaft locking device, to be used as OEM T10171
- Dial indicator holder, to be used like OEM T10170 (dial indicator holder with 274 mm total length, external thread M14 x 1.25 mm, for setting top dead center)
-Crankshaft locking, to be used as OEM T10340
-Hydraulic clamp lock, to be used like OEM T40011 (8 mm clamping shank, can also be used elsewhere, for example for mounting in magnetic base)
-Precision dial indicator to find the piston OT (resolution: 0.01 mm / measuring range: 0-8 mm / diameter: 41 mm)
-2x crankshaft gear locking pin to be used like OEM T10341
(two guide pins 135 mm long, 24 mm long external thread M8 x 1.25 mm, mutual external hexagon wrench size 6 mm)
- Camshaft locking device to be used as OEM T10414

Technical specifications:
- Engine timing tool for AUDI for VW 1.6 FSI
- For professional engine repairs
- For installing and removing the camshafts, changing the timing chain, testing
- Chain design: Simplex
- Number of chain links: 130

Package include:

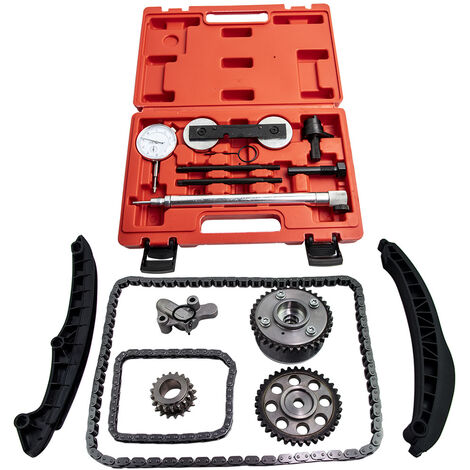

1x timing chain kit (as the pictures show)
1x adjustment tool (as the pictures show)

Note:
- It is an aftermarket camshaft adjuster, it serves as a replacement for the original camshaft adjuster.
- For any needs please contact us.

Box Color: The color of the box is random
