HIKVISION DS-2CD1323G0-IUF TELECAMERA DOME NETWORK 2MP 2.8MM SLOT SD AUDIO IP67
15 € di sconto a partire da 200 €
con il codice
con il codice
Acquisti per la tua azienda?
Prezzi negoziati IVA esclusa fino a -20%
Venduto da GASIASHOP e 1 altro commerciante
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione

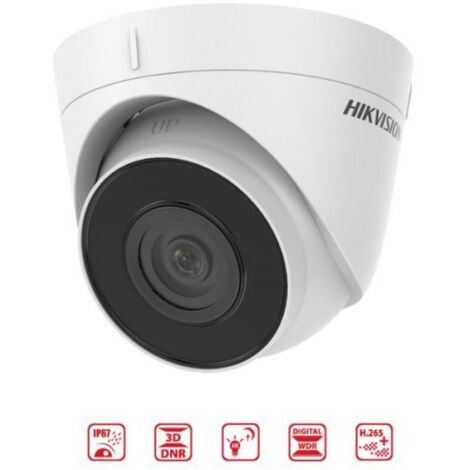

Telecamera IP modello Turret con risoluzione 2mpx ( 1920 x 1080 pixel ), ottica grandangolare da 2,8mm - campo visivo in orizzontale di 104°, led infrarossi fino a 30m, compressione video H.265+, alimentazione a 12V o in PoE ( tramite cavo lan ) può essere alimentata da switch PoE o da Nvr PoE.
Principali Caratteristiche :
- Immagini di alta qualità con risoluzione da 2 MP
- Efficiente tecnologia di compressione H.265+
- Immagini nitide in controluce grazie alla tecnologia DWDR
- Resistente all'acqua e alla polvere (IP67)
- EXIR 2.0: tecnologia infrarossa avanzata con lunga portata IR
- Microfono integrato per la sicurezza audio in tempo reale
- Supporta fino a 256 GB di spazio di archiviazione sulla scheda SD
Specifiche tecniche:
| Model | DS-2CD1323G0-IUF |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator | |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | Yes |
| Hardware Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| General | |
| Linkage Method | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Camera Material | Metal & Plastic |
| Camera Dimension | Ø110 mm × 85.3 mm |
| Camera Weight | Approx. 320 g |
| Storage Conditions | -30 °C to 60 °C. Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C. Humidity: 95% or less (non-condensing) |
| Web Client Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.120 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Protection | IP67 (IEC 60529-2013) |

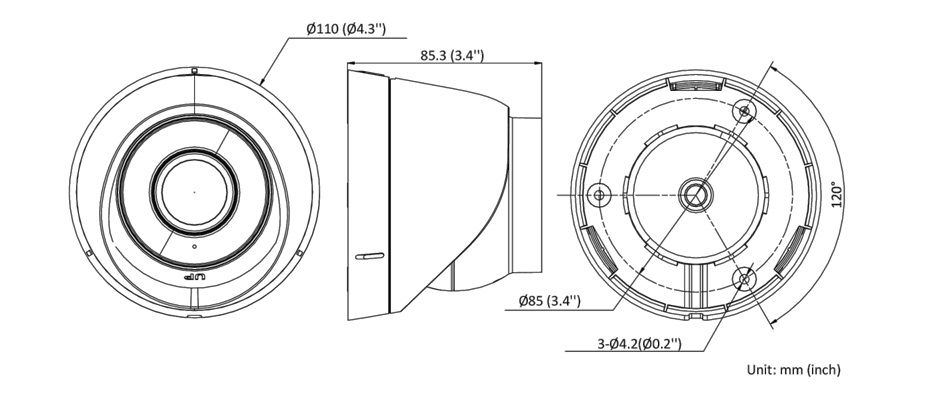

Disegno tecnico:

Caratteristiche
- MarcheHIKVISION
- Peso400 g
- Alimentazione elettricaCablato
- Con visione notturnaSi
- ConnessoSi
- Uso previstoEsterno
- Rilevamento intelligenteRilevamento persone / Rilevamento veicoli
- Registrazione localeScheda SD
- Indice di protezioneIP67
- InfrarossoSi
- Larghezza108 cm
- Microfono incorporatoSi
- MotorizzatoNo
- Tipo di videocameraSorveglianza
- Referenza ManoManoME89099528
- MMID304783644151
- Rif. costruttore311316011
- EAN6941264097969
Hikvision è un fornitore leader a livello mondiale di prodotti e soluzioni per la sicurezza. Con una forza lavoro di ricerca e sviluppo estesa e altamente qualificata, Hikvision produce una suite completa di prodotti e soluzioni per un'ampia gamma di mercati verticali. Oltre al settore della sicurezza, Hikvision estende la sua portata ai settori della tecnologia per la casa intelligente, dell'automazione industriale e dell'elettronica automobilistica per raggiungere la sua visione a lungo termine. I prodotti Hikvision offrono inoltre una potente business intelligence per gli utenti finali, che può consentire operazioni più efficienti e un maggiore successo commerciale.
