Detettore di movimento PIR Kanlux

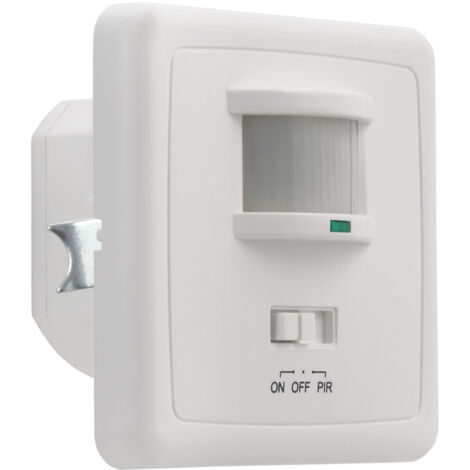

The Kanlux MERGE PIR twilight motion sensor in white (code 7690) is a practical solution for automatic lighting control in indoor spaces, designed to improve comfort and reduce unnecessary energy use. Using PIR infrared technology, it detects movement by sensing changes in body heat, delivering reliable activation exactly when needed. Thanks to a wide detection range of up to 9 m and a broad 150° horizontal / 60° vertical detection angle, it helps eliminate dark zones and supports consistent illumination management in corridors, staircases, entryways, storage rooms, and utility areas.

This flush wall (junction box) mounted sensor integrates neatly into the installation for a clean, modern finish. You can fine-tune operation with adjustable settings: the ambient light sensitivity can be set from 3 to 2000 lx to ensure switching occurs only at the desired brightness level, while the time delay is adjustable from 10 seconds to 10 minutes for optimal convenience. Operating on 220–240 V and supporting loads up to 1200 W, it is compatible with many common lighting circuits. The durable plastic housing and compact dimensions (83 × 83 × 55 mm) make it an excellent choice for discreet indoor use (protection rating IP00).

• Type: PIR motion sensor with twilight function (infrared body-heat detection)
• Detection coverage: 9 m range, 150° / 60° angle
• Light threshold adjustment: 3–2000 lx
• Switch-on time adjustment: 10 s – 10 min
• Max connected load: 1200 W
• Installation: in-wall (junction box), indoor use IP00
• Power supply: 220–240 V
• Finish & material: white, durable plastic
• Dimensions: 8.3 × 8.3 × 5.5 cm
• Warranty: 2 years

Choose the Kanlux 7690 to enhance your lighting installation with smart, automatic switching, improved everyday convenience, and better energy efficiency—a reliable addition to modern indoor lighting systems.
