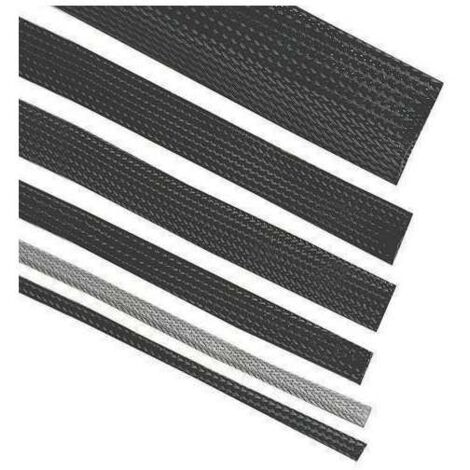

Guaina Trecciata Elastica in Poliestere 20 mm Nera

Codice ErreBi: 13204
Diametro: 20mm
Temperatura di esercizio: -50° / +150°
Vendita al metro

Braided mono-filament polyester, resistant to abrasion,
chemicals, mildew, UV rays and marine atmosphere. Suitable for
protection of electrical cables, adhering perfectly to the article, since its power
to expand up to twice the nominal diameter.
He cuts through the appropriate size sheath heat to prevent fraying.
Color: black and gray.
Insensitive to water. No toxicity.

Polyester yarn diameter: 525 mm 0.22 dtex
Operating temperature: - 50 ° C / + 150 ° C
Max continuous use: 120 ° C
Max in alternate use: 180 ° C
Self-extinguishing flammability rating: UL 94 HB
Oxygen index LOI 27.5
Melting point: 260 ° C
Softening point: 230 ° C / 240 ° C
Water absorption in normal climate: 0.4%
Water absorption at saturation: 0.5 - 0.6%
Maximum elongation at break: 23-28%
Withdrawal H2O at 100 ° C x 3: 2 - 10%

Scheda Tecnica

Tipologia di prodotto: Guaina Trecciata
Materiale: Poliestere
Colore: Nero
Temperatura operativa: -50°C a +150°C
Diametro interno: 20 mm
Espandibile: Si
Diametro interno massimo: 40 mm
