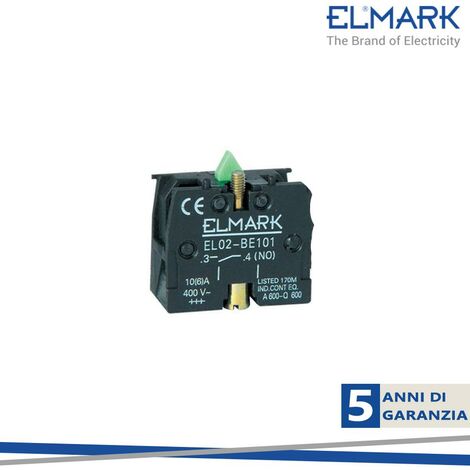

CONTATTO AGGIUNTIVO PER PULSANEL02-BE101 1NO VERDE

Technical characteristics:
- Insulation voltage: 660V 50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6 (230V ) 0.3 (230V DC)
- IP code: IP20
- Short circuit protection: breaker 10 gG outside of the circuit
- Mechanical wear resistance: 1 106 commutation cycles
- Operating temperature: -20° to 70°
- Humidity: 35-85%RH
- Connecting wires torque: 0.15 Nm
- Section of the conductor: 1 0.5 1 0.75 1 1 1 1.5 1 2.5mm2

Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø 22.5mm

Standards: EN60947-1 EN60947-5-1

~Scheda Tecnica~:Grado di protezione=IP20~:Colore=Verde~:Marca=ELMARK~:Tipo delle prese=1NO~:Corrente nominale a 400V=6A~:Garanzia=3+2~:Modello=EL02-BE~
