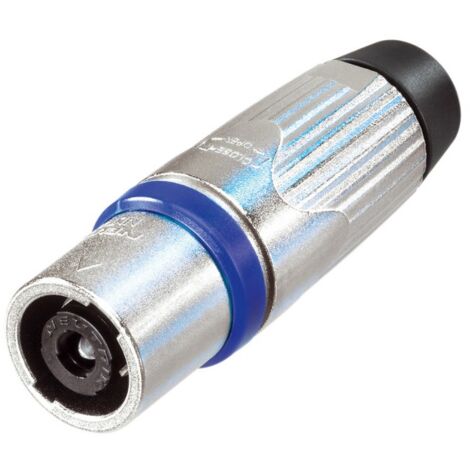

Connettore NLT4 Serie STX Maschio 4 Vie
20 € di sconto a partire da 300 €
con il codice
con il codice
Prodotto simile consegnato con
'/%3E%3C/svg%3E)
SJLERST Adattatore splitter RJ45 da 1 a 4 porte Trasmissione fluida Adattatore cavo di rete con connessione eccellente
12,41 €
81
Venduto da Errebi shop
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione
Codice ErreBi: 25207
Codice produttore: NLT4MX
Produttore: Neutrik
Vendita al pezzo

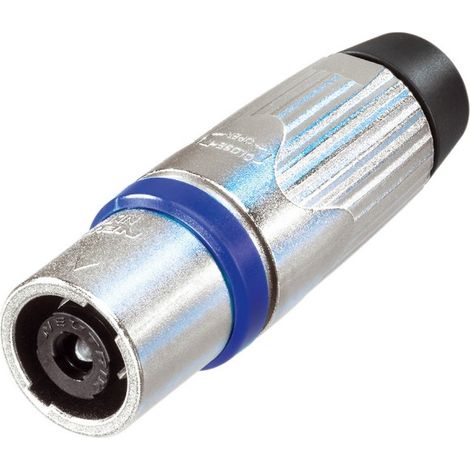

4 pole male cable connector, metal housing, chuck type strain relief.
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating in mated condition
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Product
Title: NLT4MX
Connection Type: speakON
Gender: male
Electrical
Contact resistance: < 2 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GO
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.: 9 - 16 mm
Cable retention: = 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: Solder contacts
Locking device: Quick Lock (latch)
Material
Contact plating: 4 µm Ag
Contacts: Spring copper
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Strain relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Protection class: IP 54 (mated condition)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Tipologia di prodotto: Connettore
Serie: Connettore per altoparlanti
Amperaggio: 30A
Materiale: PA6 (Poliammide 6)
Colore: Metallico
Temperatura operativa: -20°C a +80°C
Infiammabilità: 94-HB
Voltaggio: 250V
Materiale del contatto: Rame
Montaggio: Sul cavo
Range del filo: 6.00 mmq
Genere: Maschio
Numero di poli: 4
Orientamento: Diritto (180°)
Copertura del contatto: Argento
Codice produttore: NLT4MX
Produttore: Neutrik
Vendita al pezzo
4 pole male cable connector, metal housing, chuck type strain relief.
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating in mated condition
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Product
Title: NLT4MX
Connection Type: speakON
Gender: male
Electrical
Contact resistance: < 2 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GO
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.: 9 - 16 mm
Cable retention: = 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: Solder contacts
Locking device: Quick Lock (latch)
Material
Contact plating: 4 µm Ag
Contacts: Spring copper
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Strain relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Protection class: IP 54 (mated condition)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Tipologia di prodotto: Connettore
Serie: Connettore per altoparlanti
Amperaggio: 30A
Materiale: PA6 (Poliammide 6)
Colore: Metallico
Temperatura operativa: -20°C a +80°C
Infiammabilità: 94-HB
Voltaggio: 250V
Materiale del contatto: Rame
Montaggio: Sul cavo
Range del filo: 6.00 mmq
Genere: Maschio
Numero di poli: 4
Orientamento: Diritto (180°)
Copertura del contatto: Argento
Caratteristiche
- MarcheNEUTRIK
- Indice di protezioneIP54
- Intensità di corrente40 A
- MaterialeMetallo
- Peso70 g
- Numero articoli per confezione1
- Tensione elettrica250 V
- Tipo di cavo audio e videoCavo altoparlante
- Tipo di porta di connessioneConnessione
- Referenza ManoManoME4535736
- MMID100267332680
- Rif. costruttoreNLT4MX
