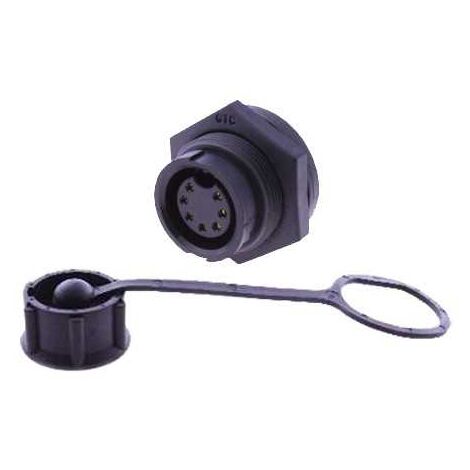

Connettore Circolare C3 Femmina 7 Vie da Panello
20 € di sconto a partire da 300 €
con il codice
con il codice
Prodotto simile consegnato con
'/%3E%3C/svg%3E)
60 connettori elettrici con leva di controllo, 30 connettori 2 ingressi, 20 connettori 3 ingressi, 10 connettori 5 ingressi
12,99 €
17
Venduto da Errebi shop
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione
Codice ErreBi: 21539
Codice produttore: GT153200-02070
Produttore: GT CONTACT
Vendita al pezzo
The Waterproof Circular Connector has designed for a wide range of applications. This series is basically applied to wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, marine, automation machine and IPC/Military NB. The waterproof technology is guaranteed for the product has been tested in a 1M depth water environment for 30 minutes.
Apart from the material to make waterproof circular connector, we also focus on the process of producing. With a strict monitoring system, we are confident in providing our customers the best product. In order to make the customers feel satisfying, we also provided customized as well as the blueprints discussion services. If you are interested in our products and the services, please feel free and contact with us for our waterproof circular connector today!
Current Rating: 5.0A
AWG Gauge: 20 AWG ~ 24 AWG
Temperature Range: -40°C / +105°C
IP Rating: IP 67
Material
Female Housing: PA66
Female Contacts: Copper Alloy, Au Plating
Panel Hex Nut: PA66
Panel Gasket: Silicone
Glue: Epoxy
Technical Data
Insulation Resistance : DC500V±10%, test for 1 minute and the insulation resistance should be more than100Mohm
Dielectric Withstanding Voltage : 1500 V AC contact-to-contact, for 1 minute.
Contact Resistance: 10mohm at 10mA Max.
Durability: 4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock: 5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test: Under 1 M water for 30 minutes.
Scheda Tecnica
Tipologia di prodotto: Connettore
Amperaggio: 5A
Materiale: PA66 (Poliammide 66, Nylon 66)
Colore: Nero
IP Protezione: IP67
Temperatura operativa: -40°C a +105°C
Voltaggio: 500V
Materiale del contatto: Lega di rame
Range del filo: 24 - 20 AWG
Genere: Femmina
Numero di poli: 7
Copertura del contatto: Oro
Codice produttore: GT153200-02070
Produttore: GT CONTACT
Vendita al pezzo
The Waterproof Circular Connector has designed for a wide range of applications. This series is basically applied to wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, marine, automation machine and IPC/Military NB. The waterproof technology is guaranteed for the product has been tested in a 1M depth water environment for 30 minutes.
Apart from the material to make waterproof circular connector, we also focus on the process of producing. With a strict monitoring system, we are confident in providing our customers the best product. In order to make the customers feel satisfying, we also provided customized as well as the blueprints discussion services. If you are interested in our products and the services, please feel free and contact with us for our waterproof circular connector today!
Current Rating: 5.0A
AWG Gauge: 20 AWG ~ 24 AWG
Temperature Range: -40°C / +105°C
IP Rating: IP 67
Material
Female Housing: PA66
Female Contacts: Copper Alloy, Au Plating
Panel Hex Nut: PA66
Panel Gasket: Silicone
Glue: Epoxy
Technical Data
Insulation Resistance : DC500V±10%, test for 1 minute and the insulation resistance should be more than100Mohm
Dielectric Withstanding Voltage : 1500 V AC contact-to-contact, for 1 minute.
Contact Resistance: 10mohm at 10mA Max.
Durability: 4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock: 5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test: Under 1 M water for 30 minutes.
Scheda Tecnica
Tipologia di prodotto: Connettore
Amperaggio: 5A
Materiale: PA66 (Poliammide 66, Nylon 66)
Colore: Nero
IP Protezione: IP67
Temperatura operativa: -40°C a +105°C
Voltaggio: 500V
Materiale del contatto: Lega di rame
Range del filo: 24 - 20 AWG
Genere: Femmina
Numero di poli: 7
Copertura del contatto: Oro
Caratteristiche
- MarcheERREBI GROUP
- Numero articoli per confezione1
- Configurazione della connessioneFemmina
- Indice di protezioneIP67
- Intensità di corrente5 A
- MaterialePoliammide (Pa)
- Tensione elettrica500 V
- Tipo di porta di connessioneConnessione
- Referenza ManoManoME89313497
- MMID475468457488
- Rif. costruttoreGT153200-02070
