Coil Spring Over Struts for Honda Civic 96-00 Adjustable 24-Way suspension Kit

Application

For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9
For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only ED8\ED9\EE6\EE8\EF6\EF7\EF8
For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3
For Honda CR-X del Sol 1992-1995 EG EG1
For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1
For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only

Note: for some vehiles, you will need sleeves and washers that already included in our package.

Specification
Front and Rear top mount: rubber
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gray body with black spring
Warranty: 2 Years for any manufacturing defect

Feature

Installazione rapida: Viene fornito il parametro Preload, Risparmia il tempo di installazione di 3-4 ore
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
4. Twin-Tube structure allows sufficient stroke within the shock absorber.

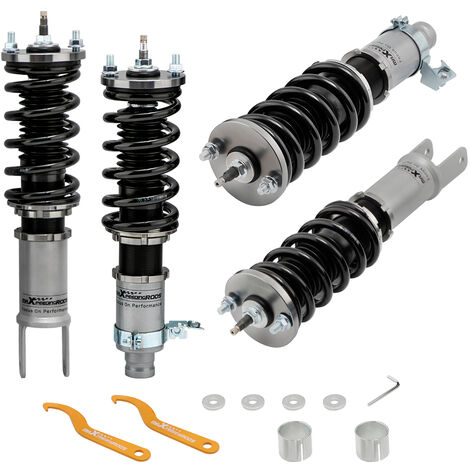

5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
11. Steel shock bodies with special surface treatment to improve the durability.
12. Full rebuildable.

Notice
* No instruction included; Professional installation & alignment suggested.
