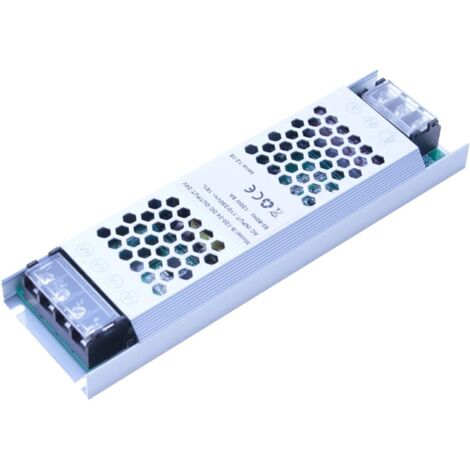

Alimentatore LED Ultra Slim 24V 100W IP20 IdeaLED ID-3263

The IdeaLED Ultra Slim LED Power Supply 24V 100W IP20 (ID-3263) is a reliable solution designed for powering 24V DC LED lighting systems in indoor installations. Built with a robust electronic architecture, it offers high resistance to mains voltage fluctuations and improved protection against impulse overvoltage peaks, helping to safeguard sensitive LED strips and other electronic components. The integrated PFC (Power Factor Correction) switching converter optimizes energy usage and supports stable operation, while the galvanic isolation transformer enhances user safety by separating the load from the electrical grid. With a 24V output voltage, it is a commonly used low-voltage standard for modern LED applications.

Thanks to its ULTRA SLIM housing (height approx. 2.3 cm), this power supply is ideal where space is limited, such as in furniture, coves, and modular lighting builds. The aluminium body acts as a heat sink, and the perforated profile supports air cooling; for best performance, installation should allow adequate airflow. It can be fixed using 4 mounting screws (max diameter 3 mm, screws not included). This model delivers up to 100W with an output of 24V DC / 4.16A, making it suitable for powering multiple LED segments in a clean, professional lighting setup.

• Power: 100W max (recommended for stable operation within the specified load)
• Output: 24V DC, 4.16A
• Input: 110–230V AC, 50–60Hz
• Protection & stability: PFC switching technology, polymer resettable fuse (mains side), overcurrent limiter with converter shutdown (load side)
• Ingress protection: IP20 for indoor use
• Construction: aluminium ultra-slim enclosure with cooling perforation
• Dimensions: approx. 22.5 cm (W) × 5.3 cm (D) × 2.3 cm (H)
• Application: LED strips and 24V low-voltage receivers in indoor lighting projects
• Model identifiers: IdeaLED, ID-3263, EAN 5901874273543
• Warranty: 2 years
