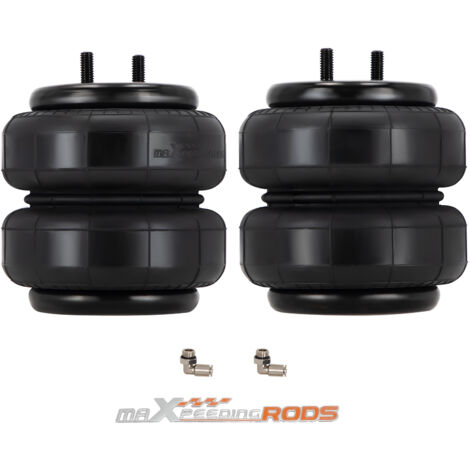

2X Sospensione Pneumatica 2500 LBS Air Suspension Bags For Firestone 6781

Extra Postage will be charged to the following Post Code:

Italy: 04020, 04027, 07020, 07024, 07046, 09014, 23030, 30010, 30030, 30100, 57030,
57100, 58012, 58018, 71010, 71040, 71100,
80100, 90010, 91010, 91017, 91023, 92010, 98050, 98055, 98060,
57031- 57039; 80070- 80079; 30121-30176;

No Shipping Service to the following Post Code.

Italy:  10010-10156


Applicazione

Per la maggior parte dei camion, furgoni, SUV, ecc.

OE/Numero di parte

For W21-760-6781

For Firestone 6781

Specifiche

Condizione: Nuovo di zecca

Posizione sul veicolo: Sinistra, Destra, Anteriore, Posteriore

Altezza di progettazione: 165 mm

Altezza minima: 45 mm

Altezza massima: 250-280 mm

Corsa di lavoro: 205-235 mm

Dimensione del porto dell'aria: G1/4-19

Dimensione del foro di installazione: 3/8-16UNC

Diametro della piastra superiore: 112 mm

Diametro del corpo del sacchetto dell'aria: 146 mm

Capacità del sacchetto dell'aria: 2500LBS / lato

PSI minimo: 5 PSI

PSI max.: 100 PSI

Dimensioni del pacchetto: 22*19*33 cm

Peso dell'articolo: 4200 g

Quantità

- 2x 2500 LBS Sacche di sospensione pneumatica

English Version

These air suspension bags are aftermarket ones. They will replace the original rear air springs.

Application

Compatible for most of Truck, Van, SUV,etc

OE/Part number

For W21-760-6781

For Firestone 6781

Specification

Condition: Brand New

Placement on Vehicle: Left, Right, Front, Rear

Design height: 165 mm

Min height: 45mm

Max height: 250-280mm

Working stroke: 205-235mm

air port size: G1/4-19

Install hole size: 3/8-16UNC

Top plate diameter: 112 mm

Air spring bag body diameter: 146 mm

Air spring bag capacity:  2500LBS / Side

Minimum PSI: 5 PSI

Maximum PSI: 100PSI

Package Dimensions: 22*19*33cm

Item Weight: 4200g

Quantity

- 2x 2500 LBS Air suspension bags

Features

1. Product certification: ISO9001:2015
2. Stress test over 5,000,000 times: durable and safe
3. Burst pressure≥2.0MPa: high compressive strength and less noise
4. 100% Air tightness guarantee
5. Temperature range≥-40℃/≤70℃: premium natural rubber material
6. Anti-corrosion and provide a more consistent wear surface
7. Built to strict quality control standards
8. CNC machined components
9. Sturdy & durable material
10. Easy to install
11. Designed for comfort suspension
12. Restore the original ride height and improve ride quality
13. Eliminating abnormal sound
14. Good heat dissipation
15. Gives the driver more control of ride
16. It has a high compressive strength and good sound insulation to ensure our driving comfort and safety

Important Notice

- Before purchasing, please confirm whether the parameters (especially height, diameter, bolt specifications) are consistent with ours

- Professional installation is highly recommended.

- For any needs please contact us via eBay message.
