Informazioni sul prodotto
Descrizione
Codice ErreBi: 16576
Diametro: 8mm
Temperatura di esercizio (°C): 180°
Vendita al metro

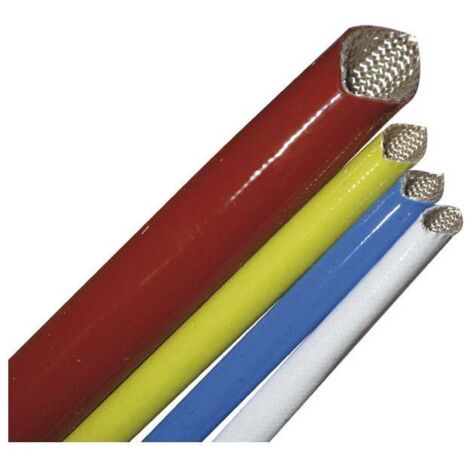

Insulation jacket braided fiberglass coated with silicone resin. It has excellent resistance to high temperatures and a good electrical resistance, withstands vibration, rough handling and is highly resistant to bending being very flexible. Resistant to most chemical agents such as UV radiation, solvents, greases, oils. It is notaffected by mold or fungus. Used in wiring of appliances and heaters, ovens, stoves,irons, welding machines, lamps, transformers, electrical panels, etc. etc ..
It does not spread flame.
3 versions: 1.5 kV, 2.5 kV and 4 kV.
Standard color: red brick (Other: Black).
Thermal class H (180 ° C), but resists peaks of 250 ° C.
Dielectric strength to UL 1441.
After heat treatment: Do you notice any breakage or detachment of the sheath recoating after 48 hours at 260 ° C
At low temperatures: Do you notice any tears or detachment of the sheath covering after 60 minutes at - 70 ° C
Flame Propagation: Max 60 seconds
Scheda Tecnica
Tipologia di prodotto: Guaina Vetro/Silicone
Materiale: Vetro/Silicone
Colore: Rosso
Diametro interno: 8 mm
Infiammabilità: Non propagano la fiamma.
Versione: 4 kv
Espandibile: No
Temperatura operativa max.: +180°C
Diametro: 8mm
Temperatura di esercizio (°C): 180°
Vendita al metro
Insulation jacket braided fiberglass coated with silicone resin. It has excellent resistance to high temperatures and a good electrical resistance, withstands vibration, rough handling and is highly resistant to bending being very flexible. Resistant to most chemical agents such as UV radiation, solvents, greases, oils. It is notaffected by mold or fungus. Used in wiring of appliances and heaters, ovens, stoves,irons, welding machines, lamps, transformers, electrical panels, etc. etc ..
It does not spread flame.
3 versions: 1.5 kV, 2.5 kV and 4 kV.
Standard color: red brick (Other: Black).
Thermal class H (180 ° C), but resists peaks of 250 ° C.
Dielectric strength to UL 1441.
After heat treatment: Do you notice any breakage or detachment of the sheath recoating after 48 hours at 260 ° C
At low temperatures: Do you notice any tears or detachment of the sheath covering after 60 minutes at - 70 ° C
Flame Propagation: Max 60 seconds
Scheda Tecnica
Tipologia di prodotto: Guaina Vetro/Silicone
Materiale: Vetro/Silicone
Colore: Rosso
Diametro interno: 8 mm
Infiammabilità: Non propagano la fiamma.
Versione: 4 kv
Espandibile: No
Temperatura operativa max.: +180°C
Caratteristiche
- MarcheERREBI GROUP
- Lunghezza100 cm
- MaterialeVetro
- ColoreRosso
- Diametro interno8 mm
