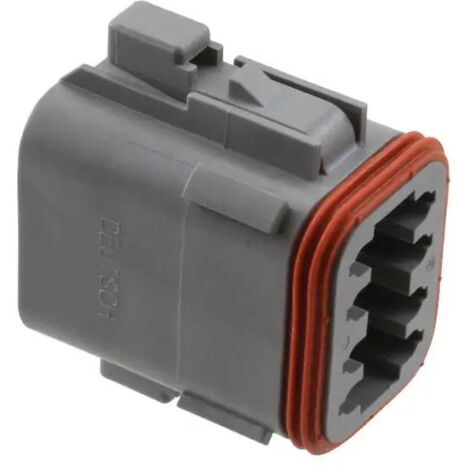

Connettore Serie DT Maschio 8 Vie
Prodotto simile consegnato con
'/%3E%3C/svg%3E)
60 connettori elettrici con leva di controllo, 30 connettori 2 ingressi, 20 connettori 3 ingressi, 10 connettori 5 ingressi
12,99 €
17
Venduto da Errebi shop
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione
Codice ErreBi: 22680
Codice produttore: DT06-08SA
Produttore: Deutsch
Vendita al pezzo
Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Connector & Contact Terminates To: Wire & Cable
- Strain Relief: Add By Accessory
- Row-to-Row Spacing: 4.45 mm [ .175 in ]
Configuration Features
- Number of Positions: 8
- Number of Rows: 2
- Blank Cavity Position: 0
Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250
Body Features
- Primary Product Color: Gray
- Connector Code: A
- Cable Exit Angle: 180°
- Body Material: PA GF
Contact Features
- Mating Pin Diameter: 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13
Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes
Housing Features
- Centerline (Pitch): 9.12 mm [ .359 in ]
Dimensions
- Width: 19.71 mm [ .776 in ]
- Height: 37.21 mm [ 1.465 in ]
- Length: 30.91 mm [ 1.217 in ]
Usage Conditions
- Operating Temperature (Max): 125 °C [ 257 °F ]
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
- Circuit Application: Power & Signal
Industry Standards
- Degree of Protection: IP68, IP6K9K
- UL Flammability Rating: 12mm Flame Test per Standard UL-94
- Agency/Standard: SAE J2030
Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
Scheda Tecnica
Tipologia di prodotto: Corpo del connettore
Serie: DT
Amperaggio: 13A
Materiale: PA (Poliammide, Nylon)
Colore: Grigio
IP Protezione: IP68
Temperatura operativa: -55°C a +125°C
Dimensione: 30,91x19,71x37,21 (L x W x H)
Voltaggio: 250V
Montaggio: Sul cavo
Genere: Maschio
Numero di poli: 8
Numero di file: 2
Passo: 9.12 mm
Orientamento: Diritto (180°)
Codice produttore: DT06-08SA
Produttore: Deutsch
Vendita al pezzo
Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Connector & Contact Terminates To: Wire & Cable
- Strain Relief: Add By Accessory
- Row-to-Row Spacing: 4.45 mm [ .175 in ]
Configuration Features
- Number of Positions: 8
- Number of Rows: 2
- Blank Cavity Position: 0
Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250
Body Features
- Primary Product Color: Gray
- Connector Code: A
- Cable Exit Angle: 180°
- Body Material: PA GF
Contact Features
- Mating Pin Diameter: 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13
Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes
Housing Features
- Centerline (Pitch): 9.12 mm [ .359 in ]
Dimensions
- Width: 19.71 mm [ .776 in ]
- Height: 37.21 mm [ 1.465 in ]
- Length: 30.91 mm [ 1.217 in ]
Usage Conditions
- Operating Temperature (Max): 125 °C [ 257 °F ]
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
- Circuit Application: Power & Signal
Industry Standards
- Degree of Protection: IP68, IP6K9K
- UL Flammability Rating: 12mm Flame Test per Standard UL-94
- Agency/Standard: SAE J2030
Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
Scheda Tecnica
Tipologia di prodotto: Corpo del connettore
Serie: DT
Amperaggio: 13A
Materiale: PA (Poliammide, Nylon)
Colore: Grigio
IP Protezione: IP68
Temperatura operativa: -55°C a +125°C
Dimensione: 30,91x19,71x37,21 (L x W x H)
Voltaggio: 250V
Montaggio: Sul cavo
Genere: Maschio
Numero di poli: 8
Numero di file: 2
Passo: 9.12 mm
Orientamento: Diritto (180°)
Caratteristiche
- MarcheDEUTSCH
- Lunghezza3.09 cm
- Larghezza1.97 cm
- Altezza3.72 cm
- Peso13 g
