Informazioni sul prodotto
Descrizione
Codice ErreBi: 24440
Codice produttore: NL4MP-3
Produttore: Neutrik
Vendita al pezzo

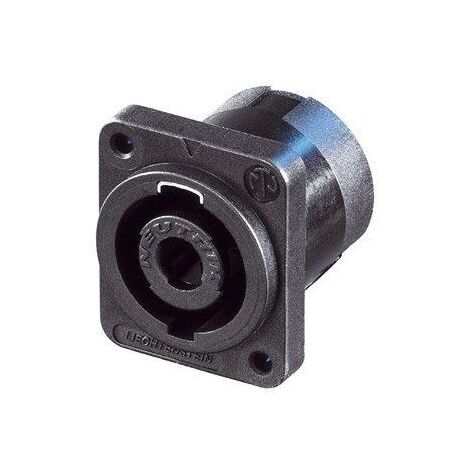

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications
Product
Title: NL4MP-3
Connection Type: speakON
Gender: male
Electrical
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Mounting direction: Rear mounting
Chassis shape: D
Layout: standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) black
Environmental
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Tipologia di prodotto: Connettore
Serie: Connettore per altoparlanti
Amperaggio: 30A
Materiale: PA6 (Poliammide 6)
Colore: Nero
Temperatura operativa: -20°C a +80°C
Infiammabilità: 94-HB
Voltaggio: 250V
Materiale del contatto: Bronzo
Montaggio: Su pannello
Genere: Maschio
Numero di poli: 4
Orientamento: Diritto (180°)
Copertura del contatto: Argento
Codice produttore: NL4MP-3
Produttore: Neutrik
Vendita al pezzo
4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications
Product
Title: NL4MP-3
Connection Type: speakON
Gender: male
Electrical
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Mounting direction: Rear mounting
Chassis shape: D
Layout: standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) black
Environmental
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Tipologia di prodotto: Connettore
Serie: Connettore per altoparlanti
Amperaggio: 30A
Materiale: PA6 (Poliammide 6)
Colore: Nero
Temperatura operativa: -20°C a +80°C
Infiammabilità: 94-HB
Voltaggio: 250V
Materiale del contatto: Bronzo
Montaggio: Su pannello
Genere: Maschio
Numero di poli: 4
Orientamento: Diritto (180°)
Copertura del contatto: Argento
Caratteristiche
- MarcheNEUTRIK
- Tensione elettrica250 V
- MaterialePoliammide (Pa)
- Numero articoli per confezione1
- Garanzia2 anno(i)
