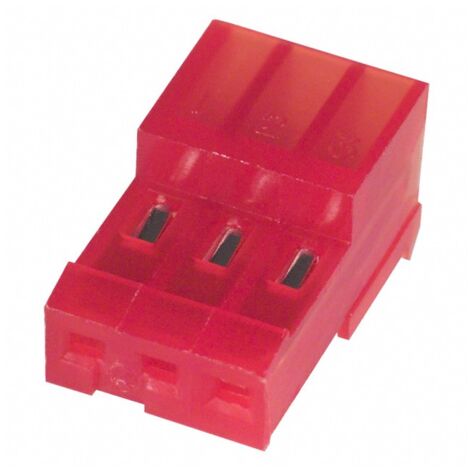

Connettore MTA 100 Femmina 3 Vie Rosso per cavo AWG 22
Prodotto simile consegnato con
'/%3E%3C/svg%3E)
INTERRUTTORE ANTIFURTO DEL TERMINALE DELLA BATTERIA
18,00 €199
Venduto da Errebi shop
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Acquistati spesso insieme
Informazioni sul prodotto
Descrizione
Codice ErreBi: 22541
Codice produttore: 3-640440-3
Produttore: TE/Connectivity
Prezzo per 6 pezzi
Note: Quantità 1 corrisponde a 6 pezzi
Esempio: Se acquisti quantità 3, riceverai 18 pezzi
Product Type Features
Wire/Cable Type: Discrete Wire, Stranded
Product Type: Connector
Applies To: Wire/Cable
Connector Type: Connector Assembly
Sealed: No
Connector Style: Receptacle
Connector Design: Closed End
Connector System: Wire-to-Post
Strain Relief: With
Number of Positions: 3
Number of Rows: 1
Backwall/Post Interruptions: Without
Electrical Characteristics
Operating Voltage (VAC): 250
Body Features
Cable Exit Angle: 90°
Contact Features
Contact Mating Area Plating Material: Tin
Contact Mating Area Plating Material Finish: Matte
Contact Mating Area Plating Thickness: 2.03µm [ 80µin ]
Contact Base Material: Copper Alloy
Contact Layout: Inline
Contact Termination Area Plating Material: Tin
Underplate Material: Nickel
Contact Termination Area Plating Thickness: 2.03 – 5.08µm [ 80 – 200µin ]
Contact Type: Socket
Underplate Material Thickness: .762µm, 30µin
Contact Termination Area Plating Material Finish: Matte
Contact Current Rating (A): 5
Termination Features
Termination Method to Wire/Cable: IDC
Mechanical Attachment
PCB Mount Alignment: Without
Mating Retention: With
PCB Mount Retention: Without
Contact Retention Type: Locking Lance
Panel Mount Retention: Without
Contact Retention: With
Mating Alignment: Without
Mating Retention Type: Locking Ramp
Housing Features
Centerline: 2.54mm [ .1in ]
Housing Color: Red
Housing Style: Standard
Housing Material: Nylon
Dimensions
Height: 6.99mm [ .275in ]
Wire/Cable Size (AWG): 22
Insulation Diameter: 1.52 mm [ .06in ]
Length: 7.62mm [ .3in ]
Wire/Cable Size (mm²): .3 – .4
Usage Conditions
Operating Temperature Range: -55 – 105°C [ -67 – 221°F ]
Operation/Application
For Use With: MTA .100 Headers & MTA .100 IDC Posted Connectors
Pick and Place Cover: Without
Industry Standards
Agency/Standard: CSA, UL
CSA Rating: Certified
UL Rating: Recognized
UL File Number: E28476
CSA File Number: LR7189
UL Flammability Rating: UL 94V-2
Scheda Tecnica
Tipologia di prodotto: Corpo del connettore
Serie: MTA 100
Amperaggio: 5A
Materiale: PA (Poliammide, Nylon)
Colore: Rosso
Temperatura operativa: -55°C a +105°C
Infiammabilità: 94V-0
Montaggio: Volante
Genere: Femmina
Numero di poli: 3
Numero di file: 1
Passo: 2.54 mm
Codice produttore: 3-640440-3
Produttore: TE/Connectivity
Prezzo per 6 pezzi
Note: Quantità 1 corrisponde a 6 pezzi
Esempio: Se acquisti quantità 3, riceverai 18 pezzi
Product Type Features
Wire/Cable Type: Discrete Wire, Stranded
Product Type: Connector
Applies To: Wire/Cable
Connector Type: Connector Assembly
Sealed: No
Connector Style: Receptacle
Connector Design: Closed End
Connector System: Wire-to-Post
Strain Relief: With
Number of Positions: 3
Number of Rows: 1
Backwall/Post Interruptions: Without
Electrical Characteristics
Operating Voltage (VAC): 250
Body Features
Cable Exit Angle: 90°
Contact Features
Contact Mating Area Plating Material: Tin
Contact Mating Area Plating Material Finish: Matte
Contact Mating Area Plating Thickness: 2.03µm [ 80µin ]
Contact Base Material: Copper Alloy
Contact Layout: Inline
Contact Termination Area Plating Material: Tin
Underplate Material: Nickel
Contact Termination Area Plating Thickness: 2.03 – 5.08µm [ 80 – 200µin ]
Contact Type: Socket
Underplate Material Thickness: .762µm, 30µin
Contact Termination Area Plating Material Finish: Matte
Contact Current Rating (A): 5
Termination Features
Termination Method to Wire/Cable: IDC
Mechanical Attachment
PCB Mount Alignment: Without
Mating Retention: With
PCB Mount Retention: Without
Contact Retention Type: Locking Lance
Panel Mount Retention: Without
Contact Retention: With
Mating Alignment: Without
Mating Retention Type: Locking Ramp
Housing Features
Centerline: 2.54mm [ .1in ]
Housing Color: Red
Housing Style: Standard
Housing Material: Nylon
Dimensions
Height: 6.99mm [ .275in ]
Wire/Cable Size (AWG): 22
Insulation Diameter: 1.52 mm [ .06in ]
Length: 7.62mm [ .3in ]
Wire/Cable Size (mm²): .3 – .4
Usage Conditions
Operating Temperature Range: -55 – 105°C [ -67 – 221°F ]
Operation/Application
For Use With: MTA .100 Headers & MTA .100 IDC Posted Connectors
Pick and Place Cover: Without
Industry Standards
Agency/Standard: CSA, UL
CSA Rating: Certified
UL Rating: Recognized
UL File Number: E28476
CSA File Number: LR7189
UL Flammability Rating: UL 94V-2
Scheda Tecnica
Tipologia di prodotto: Corpo del connettore
Serie: MTA 100
Amperaggio: 5A
Materiale: PA (Poliammide, Nylon)
Colore: Rosso
Temperatura operativa: -55°C a +105°C
Infiammabilità: 94V-0
Montaggio: Volante
Genere: Femmina
Numero di poli: 3
Numero di file: 1
Passo: 2.54 mm
Caratteristiche
- MarcheTE CONNECTIVITY
- Tensione elettrica250 V
- Intensità di corrente5 A
- MaterialePoliammide (Pa)
- Garanzia2 anno(i)
