Alimentatore LED 12V 75W 6,25A IP20 IdeaLED ID-3002
con il codice
Questi articoli potrebbero interessarti !
Confronta con articoli simili
Informazioni sul prodotto
Descrizione
The IdeaLED ID-3002 12V LED power supply is a reliable solution for powering low-voltage LED lighting in indoor installations. Designed for stable performance, it converts 110–230V AC mains input into a safe 12V DC output with up to 6.25A, delivering a maximum of 75W. Thanks to its robust metal housing and proven internal components, it is ideal for everyday use in residential and commercial lighting projects where consistent voltage and long service life matter.
This IP20 indoor LED transformer includes a PFC switching converter to help optimize power draw and features an isolating transformer that provides galvanic separation between the load and the power grid—an important element for electrical safety. Cooling is managed through a perforated enclosure that supports passive airflow, and the modular design allows quick mounting on vertical or horizontal surfaces using two screws (up to 4 mm diameter). It is an excellent choice for powering 12V LED strips, LED bulbs, and other 12V DC LED accents up to the rated wattage.
- Output: 12V DC, 6.25A, 75W max
- Input: 110–230V AC, 50–60Hz
- Protection features: overload protection, overvoltage protection, thermal protection
- Efficiency support: PFC switching converter for optimized reactive power consumption
- Installation: surface mounting on walls or ceilings, modular construction
- Housing: durable metal enclosure with passive ventilation
- Ingress protection: IP20 (for indoor use)
- Model: ID-3002

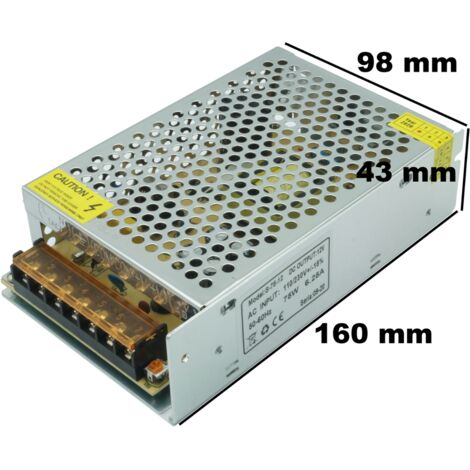

- Dimensions: 160 × 98 × 43 mm (W × D × H)
- Weight: 0.32 kg
- Warranty: 2 years
- EAN: 5901874270122
Caratteristiche
- MarcheIDEALED
- Garanzia2 anno(i)
- Destinazione dell'alimentazioneTV
- Altezza4.3 cm
- Indice di protezioneIP20
- Larghezza16 cm
- Lunghezza9.8 cm
- MaterialeMetallo
- Tecnologia di alimentazioneSwitching
- Tensione elettrica12 V
- Referenza ManoManoME209823667
- MMID815000210895
- Rif. costruttoreID-3002
- EAN5901874270122
